3Z-140
Mingyuan
40-60HP
1400mm
660x5mm
Product description

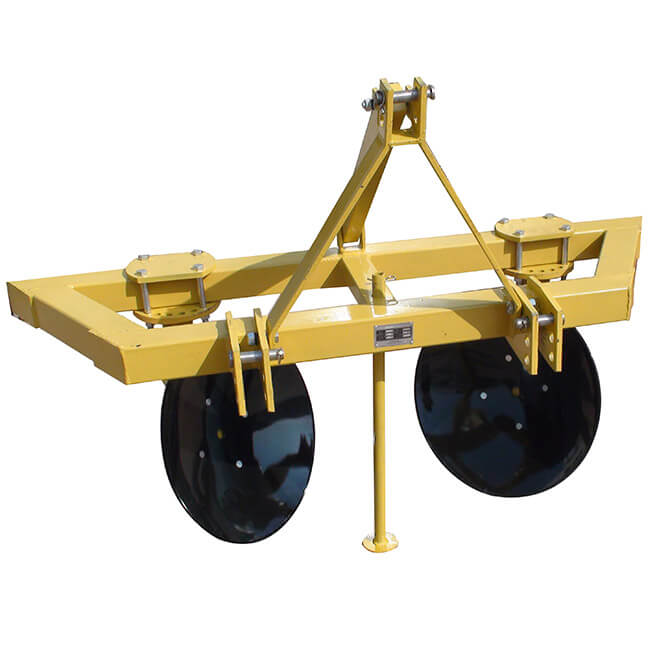

Disc Ridger:
3Z series of disc ridger is suitable for ridging after the tillage in the farm field.it consists of heavy duty tubular box frame, 3 point hitch system and discs. The disc blades are made after the heat treatment in the material of 65Mn spring steel that has better hardness. The machine is reasonable for construction, conveniently to transport, easy to adjust, and conveniently to use and maintain.
Model | 3Z-80 | 3Z-120 | 3Z-140 | 3Z-180 | 3Z-260 |
Width of cut (mm) | 800 | 1200 | 1400 | 1800 | 2600 |
Ridging width (mm) | 200~450 | 300-500 | |||
Ridging height (mm) | 150-260 | 150~300 | |||
Ridging of rows | 1(2) | 1(2) | 1 | 1(2) | 1(2) |
Weight (kg) | 120 | 140 | 220 | 200 | 246 |
Tractor power (kg) | 20~30 | 30-40 | 50-60 | 60-70 | 70-90 |
Mounted cat | Cat l | Cat ll | |||
