1LY-3
Mingyuan
60
900mm
200-250mm
660x6mm
Product description

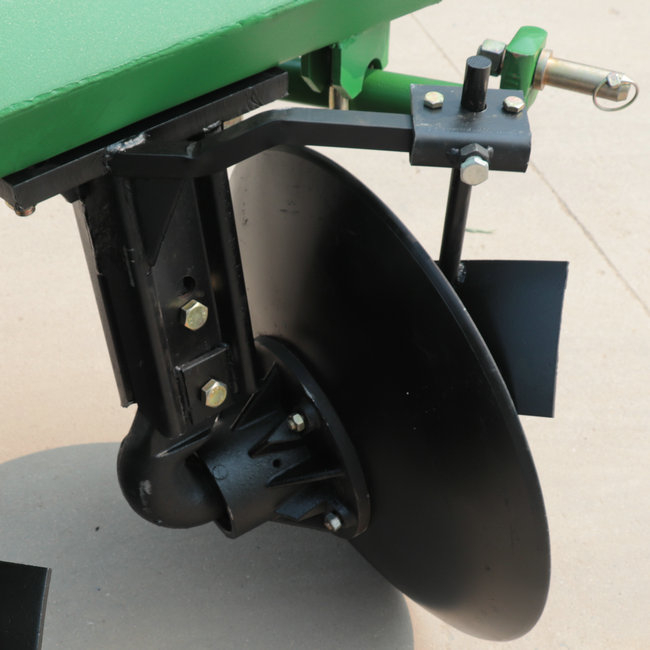

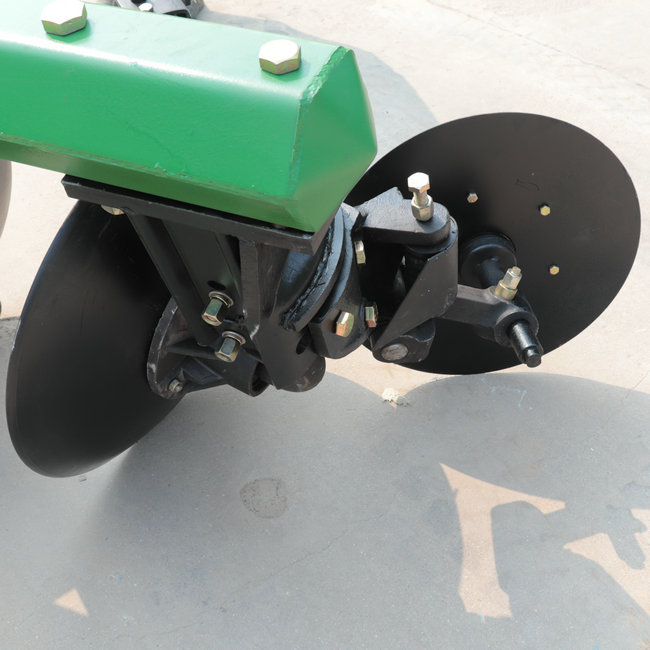

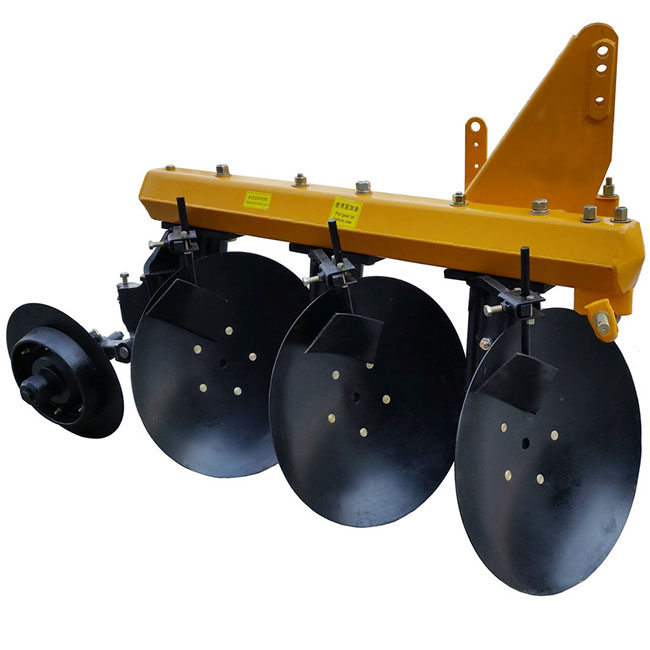

Disc Plough:
1LY Disc plough is specially designed, manufactured and borrowed according the features of foreign disc plough, it is Fully-suspended with four wheel tractor. And the discs are rotary motion when tuning the soil. This mounted disk plow is especially suitable for cultivation in the land with weeds, stems and frictional soil with bricks.
| Model | 1LY-2 | 1LY-3 | 1LY-4 | 1LY-5 |
| Working width (mm) | 600 | 900 | 1200 | 1500 |
| Working depth (mm) | 250~300 | |||
| Number of discs (pc) | 2 | 3 | 4 | 5 |
| Type of disc | 660x6mm | |||
| Total weight (kg) | 350 | 400 | 470 | 560 |
| Tractor power (hp) | 40 | 60 | 80 | 120 |
| Mounted Cat | Cat II | |||
