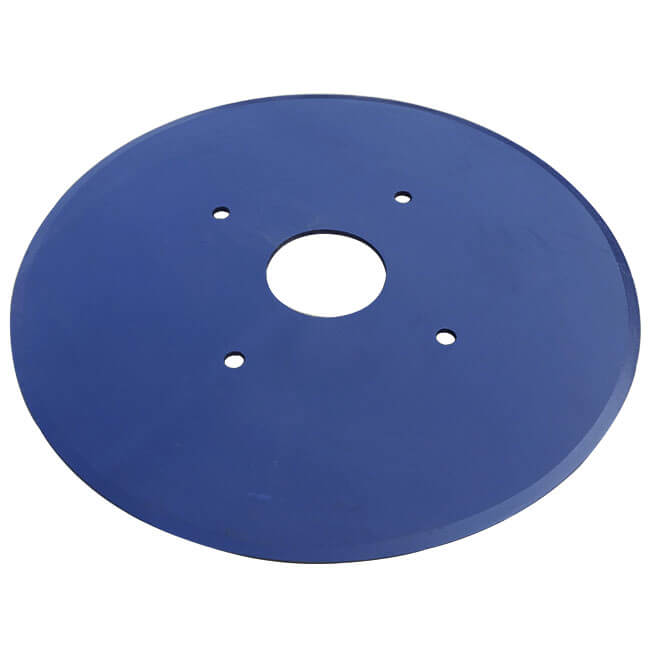

Disc blade: Disc Blades are extensively used for agricultural equipment, such as disc harrow & disc plough. It offered in 65Mn spring Steel (high-carbon steel) material in smooth type and notched type options. Offered in different diameters from 14” to 36” and thicknesses from 3mm to 12mm. Disc Blades are carefully heat treated to engage with the rocks, boulders and other obstructions. These feature superior corrosion resistance with less maintenance requirements. The durable finish also results in providing longer service life of disc blades as well as more wear resistance while being used on soil.
FLATDISC BLADES FEATURES
• Carefully tested raw material with a dedicated laboratory that verifies the composition of various elements in steel.
• High Carbon flat disc hardness: 36 - 40 HRC.
• This hardness delivers perfect and uniform performance while ensuring that the product lasts for a long time.
• Uniform and precise manufacturing, ensuring perfect performance and compatibility with various types of harrow and plough.
| Diameter | Thickness (mm) |
| 12” | 3.0 | 4.0 |
| 13” | 3.0 | 4.0 |
| 14” | 3.0 | 4.0 | 5.0 |
| 15” | 3.0 | 4.0 | 5.0 |
| 16” | 3.0 | 4.0 | 5.0 |
| 17” | 3.0 | 4.0 | 5.0 |
| 18” | 3.0 | 4.0 | 5.0 |
| 20” | 3.0 | 4.0 | 5.0 | 6.0 |
| 22” | 3.0 | 4.0 | 5.0 |6.0 |
| 24” | 3.0 | 4.0 | 5.0 |6.0 |
