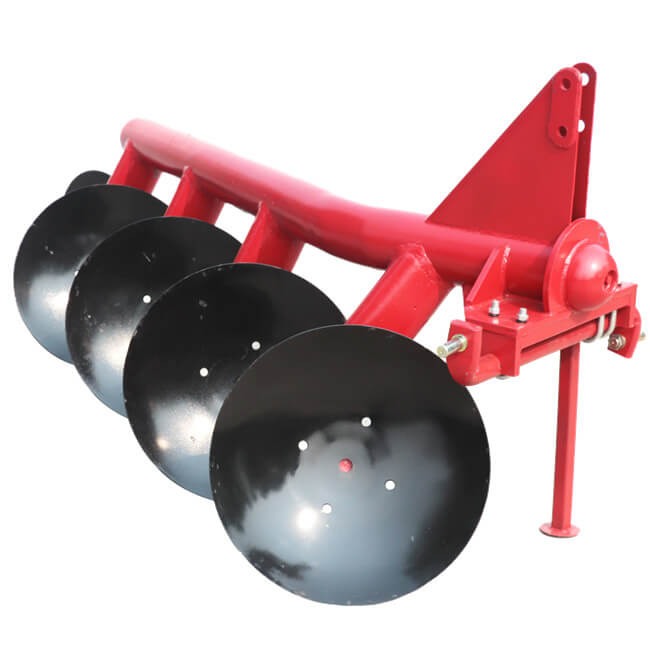

Four Disc Plough

Mounted disc plough:

1LYX disc plough is attached to four-wheel tractor; the discs of plough are revolving to furrow the land during operation. The disc plow is especially suitable for land which has weeds, stems and frictional soil with small brick etc.

Model	1LYX-230	1LYX-330	1LYX-430	1LYX-530
Working width (mm)	600	900	1200	1500
Working depth (mm)	250~300
No of disc (pc)	2	3	4	5
Type of disc	660x6mm
Total weight (kg)	270	360	470	560
Tractor power (hp)	40	60	100	130
Mounted Cat	Cat II
