1LYBZ-2.2
Mingyuan
90-120HP
2200mm
200mm
660x5mm
Product description

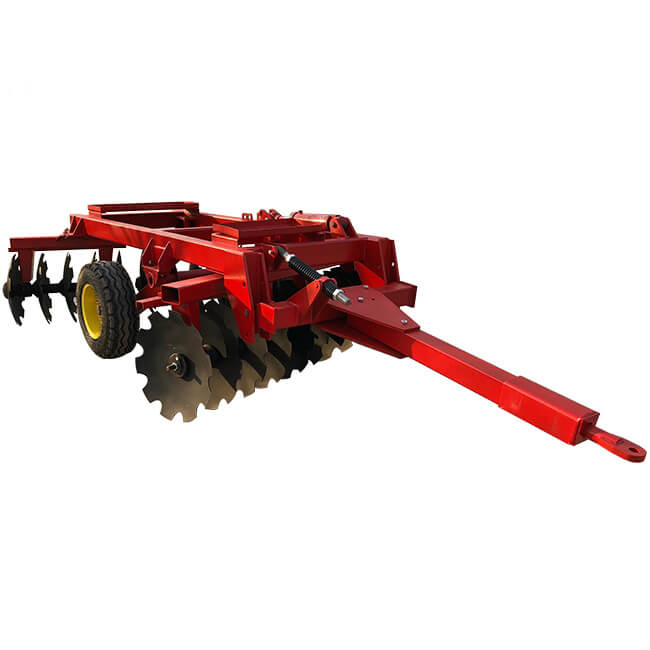

Heavy Drag Disc Harrow:
1LYBZ heavy duty hydraulic disc harrow is used in open field working for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
Drag disc harrow is design according to the Peru STAR disc harrow.
. Strong harrow shaft and spool.
. High quality 65Mn disc blade，HRC：40-44.
. Effectively breaks up heavy clods because of sturdy design and weight.
Item | 1LYBZ-2.0 | 1LYBZ-2.2 | 1LYBZ-2.5 | 1LYBZ-Y3.0 | 1LYBZ-3.4 |
Cutting width (mm) | 2000 | 2200 | 2500 | 3000 | 3400 |
Cutting depth (mm) | 180-220 | ||||
No of Disc | 18 | 20 | 24 | 28 | 32 |
Size of disc | 660x5mm | ||||
Harrow shaft | 35mm round shaft with oil bearing or 40/45mm square shaft with grease bearing | ||||
Tire type | 10.0/75-15.3 | ||||
Weight (kg) | 1150 | 1350 | 1550 | 1850 | 2100 |
Mounted cat | Trailed | ||||
Tractor Power (hp) | ≥80 | ≥90 | ≥110 | ≥120 | ≥140 |
