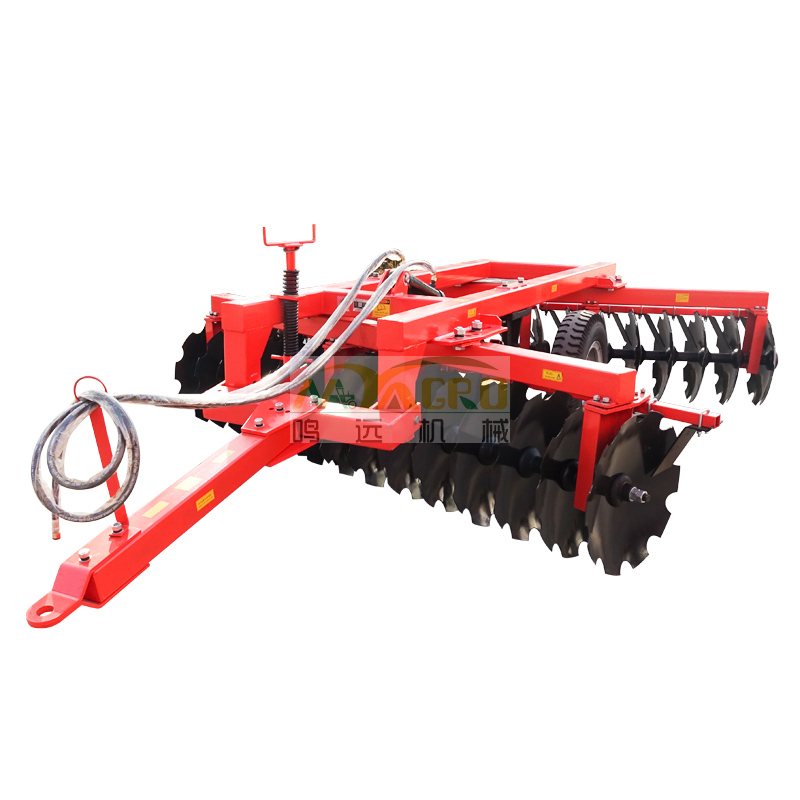

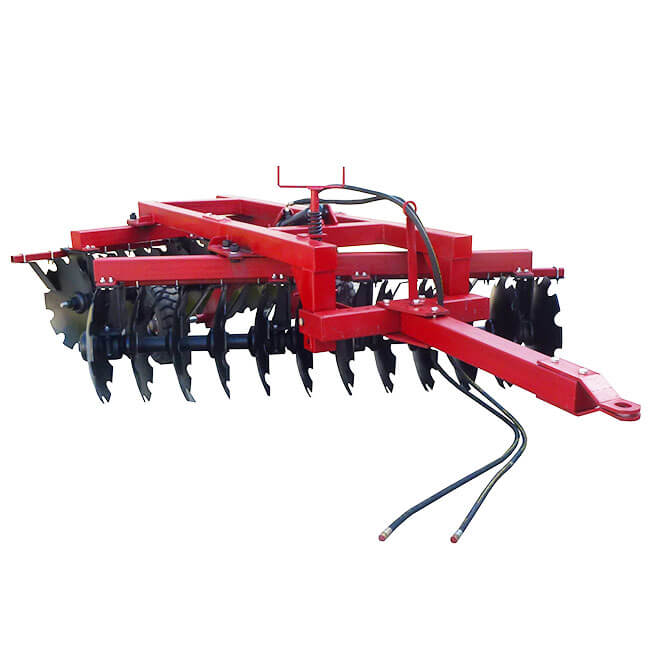

Heavy Duty Hydraulic Disc Harrow

Heavy Duty Hydraulic Disc Harrow:

1BZ heavy duty hydraulic disc harrow is used in open field working for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains.

. Strong harrow shaft and spool.
. High quality 65Mn disc blade，HRC：40-44.
. Effectively breaks up heavy clods because of sturdy design and weight.

Model	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Working width (mm)	1800	2200	2500	3000	3400	4000	5300
Working depth (mm)	200
No of disc (pcs)	16	20	24	28	32	36	48
Disc blade	660x5mm
Gang bolt	32mm Solid shaft or 40mm round shaft
Tyre	6.50-16
Total weight (kg)	1160	1250	1350	1430	1550	1900	2500
Tractor power (hp)	70	80	90	100	120	150	180
Mounted	Trailed
