1JP-300
MYAGRO
1100
100hp
300cm
20-50mm
Product Description

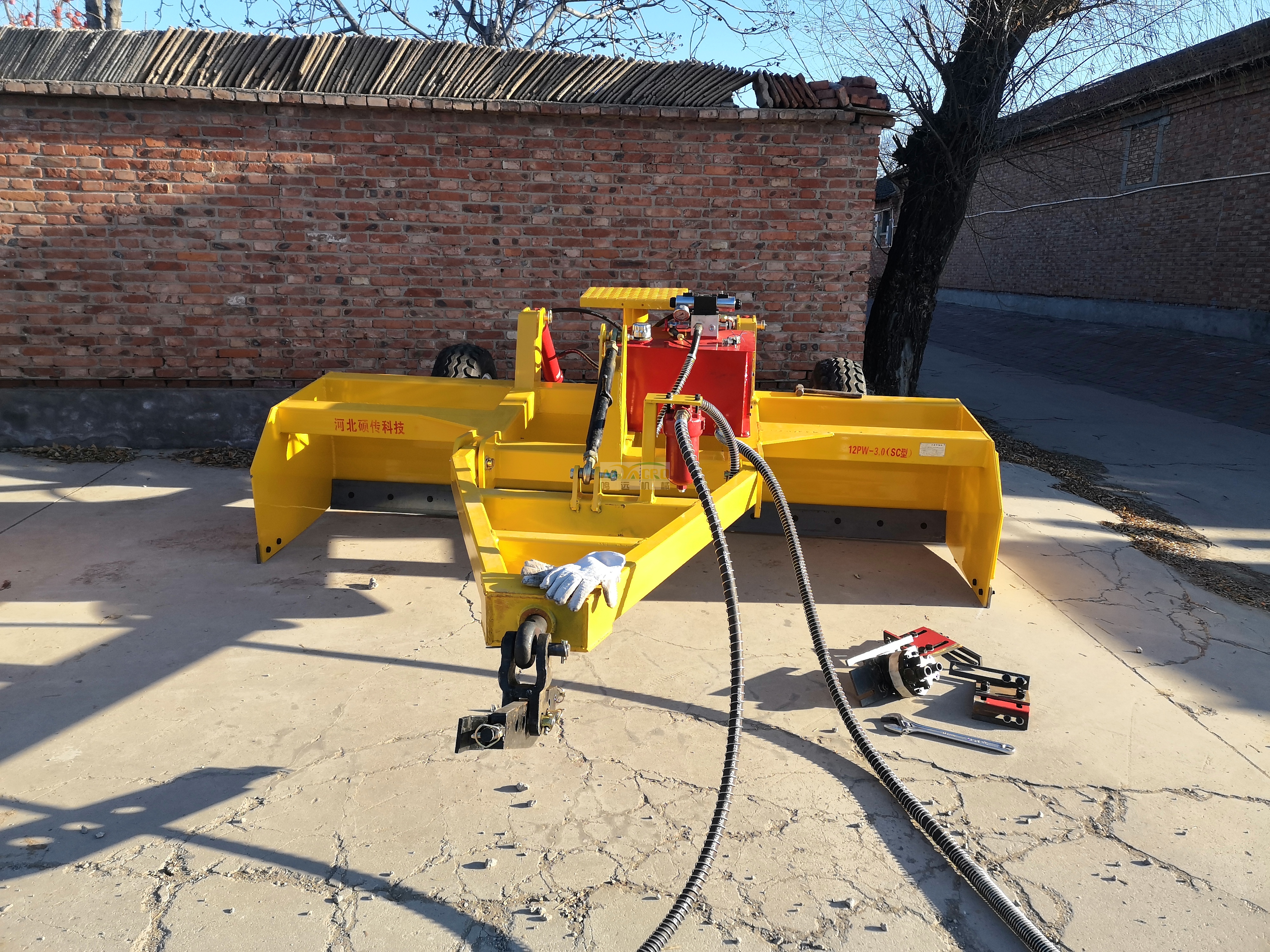

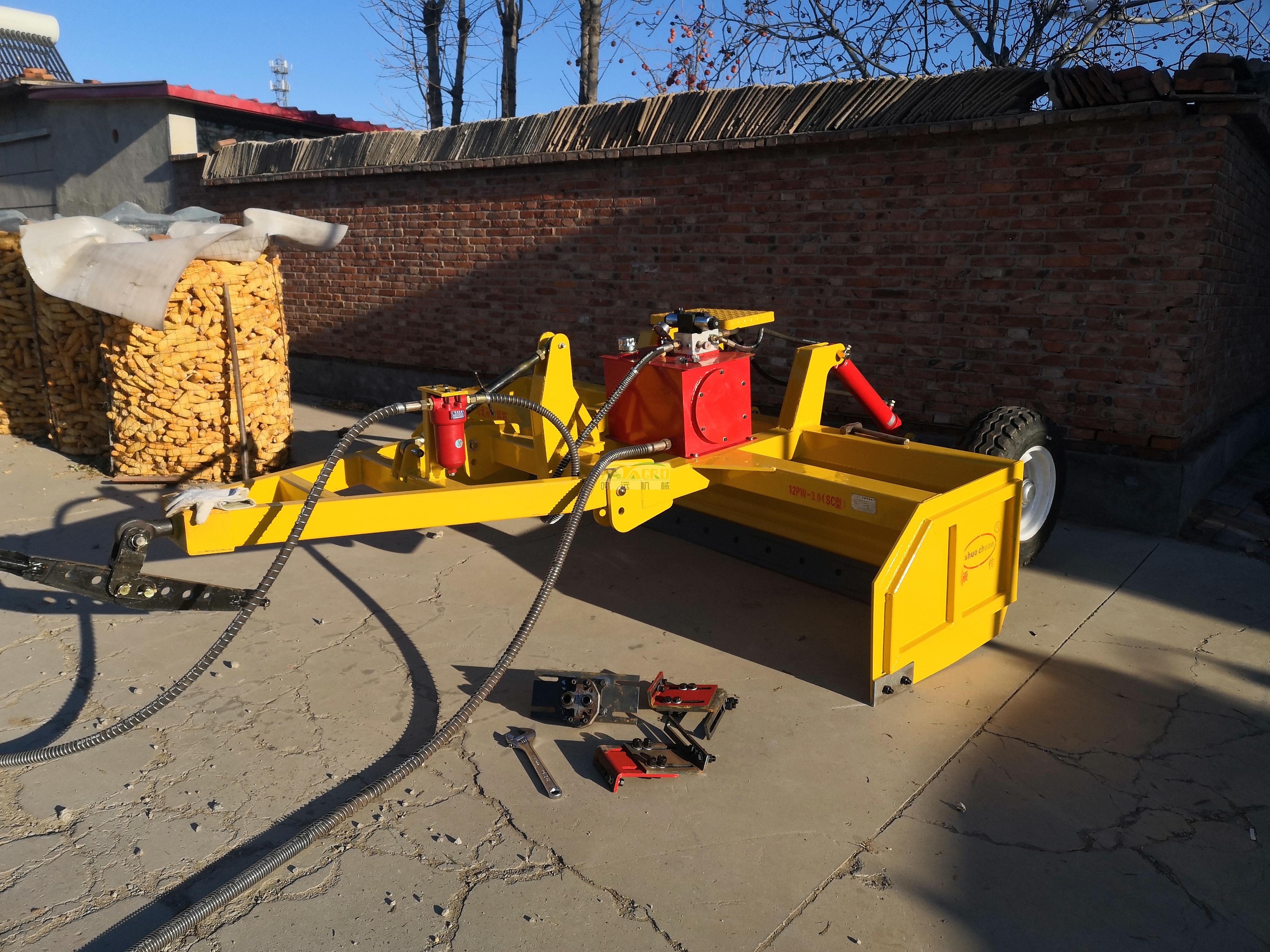

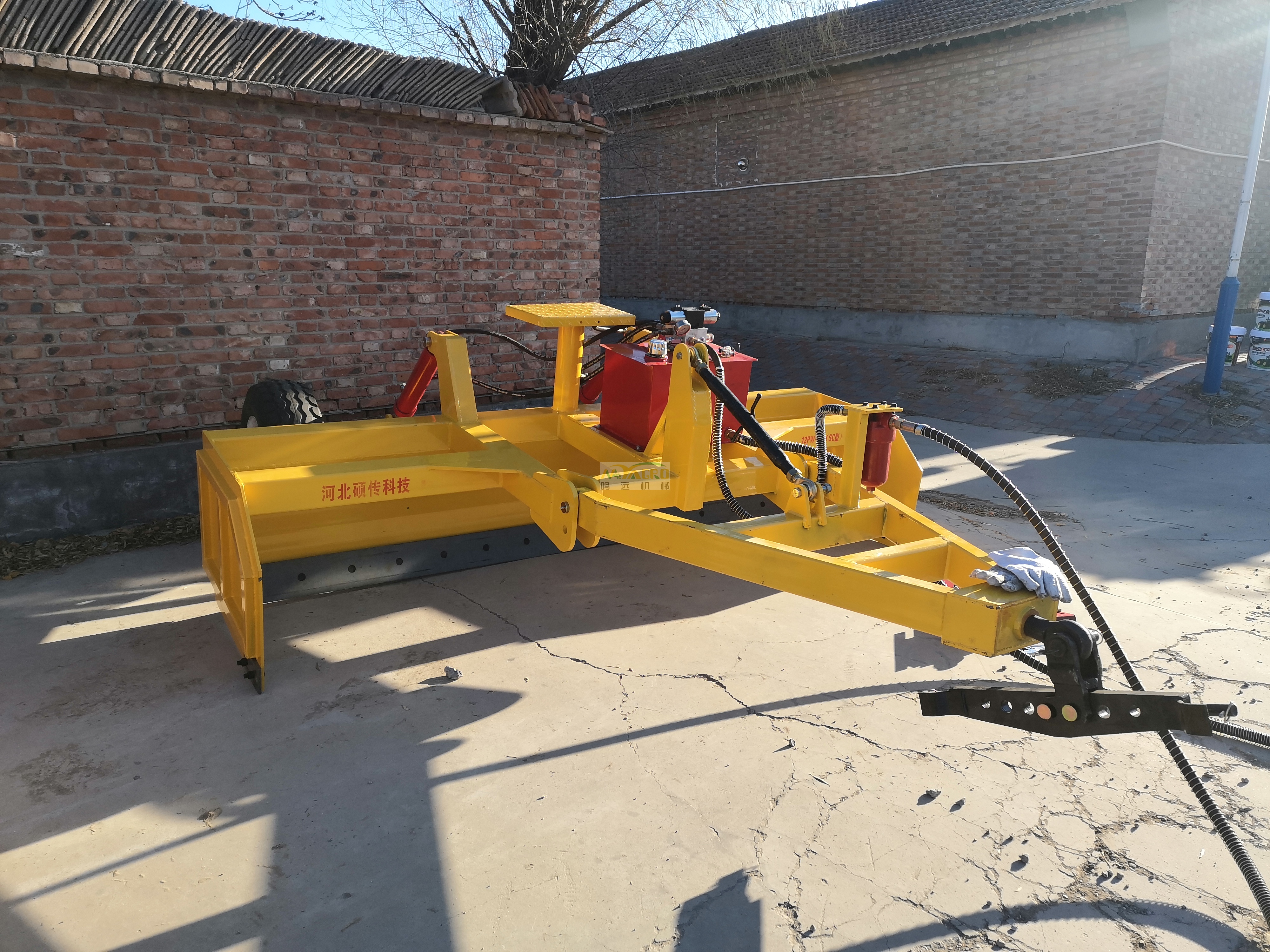

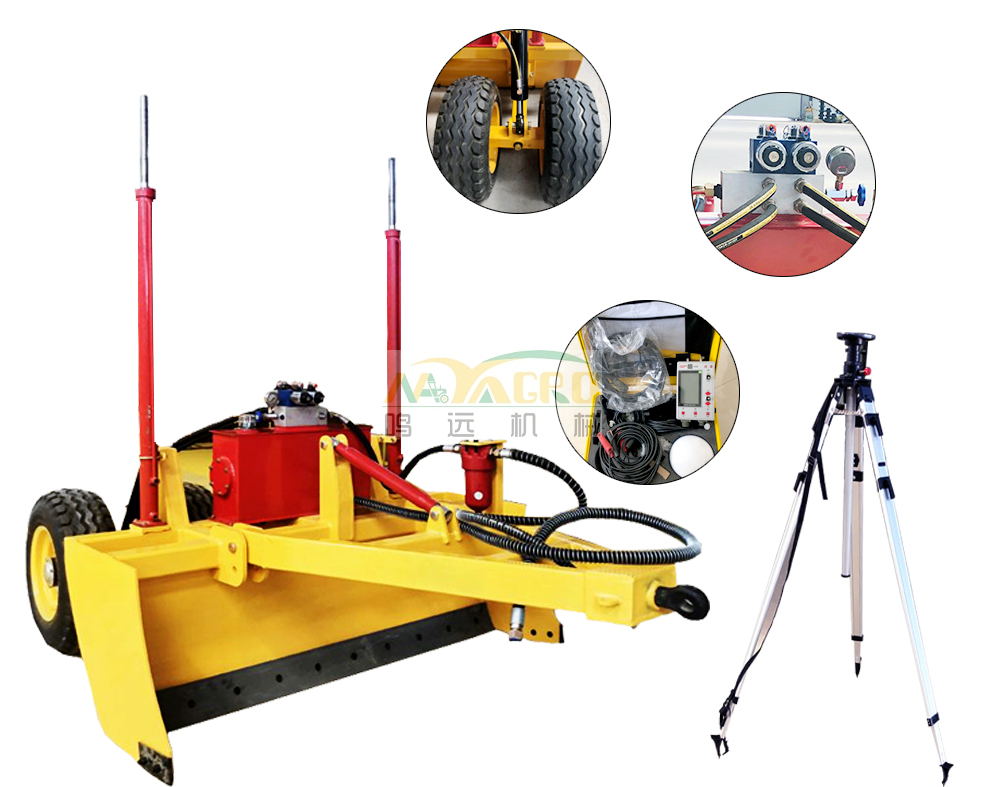

This 1JP series laser land leveler is used with 4-wheel farm tractor, can greatly help save water and make the land flatness tolerance below +/-2cm which is much better than ordinary irrigation method.
1. It can then save water by 20% or more.
2. By precision land levelling operation, can reduce the unnecessary ridge area by 3-5% to make good use of farm land. 3. With increased land flatness, it can help make fertilizer evenly distributed and increase the utilization rate by around 20%. It will then increase the crop yield by 20-30% with better water irrigation effect and the crop quality at the same time. 4. Better control of weed and pest damage.
5. Crop production cost saving by 5-15%.
Model | 1JP-200 | 1JP-250 | 1JP-300 | 1JP-350 |
Working width(mm) | 2000 | 2500 | 3000 | 3500 |
Weight(kg) | 1020 | 1080 | 1140 | 1280 |
Power(kw) | 45-55 | 55-65 | 65-88 | 88-120 |
Efficiency(hm2/h) | 1.0-1.4 | 1.3-1.8 | 1.6-2.0 | 1.9-2.3 |
Workring width(mm) | 2000 | 2500 | 3000 | 3500 |
Working distance(mm) | 500 | |||
Max.buried depth(mm) | 20-50mm | |||
Automatic leveling angle(°) | ±5 | |||
Flatness(mm/100m2) | ±15 | |||
Signal reception angle(°) | 360 | |||
Cylinder settlement(mm/h) | ≤12 | |||
Working dip angle(°) | 10±2 | |||
Hydraulic oil pressure(Mpa) | 12±0.5 | |||
Ambient temperature(℃) | 5-40 | |||
Price EXW | $3900 | $4000 | $4200 | $4300 |
