Light Disc Harrow

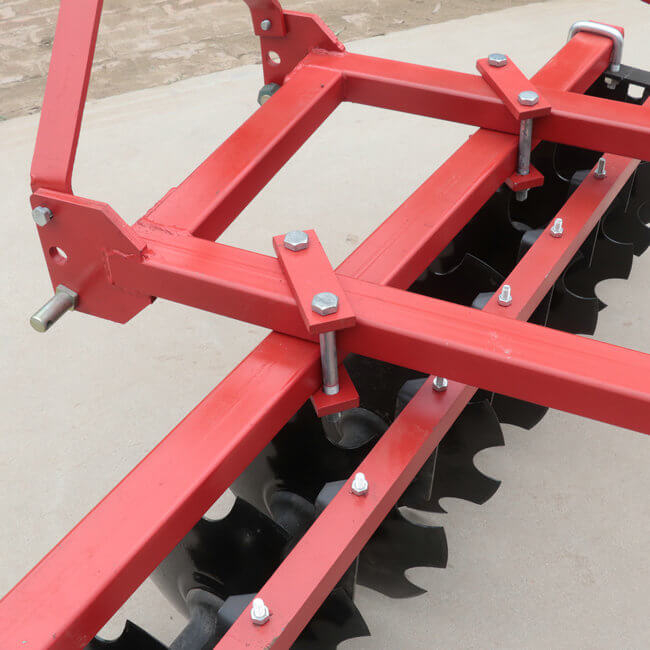

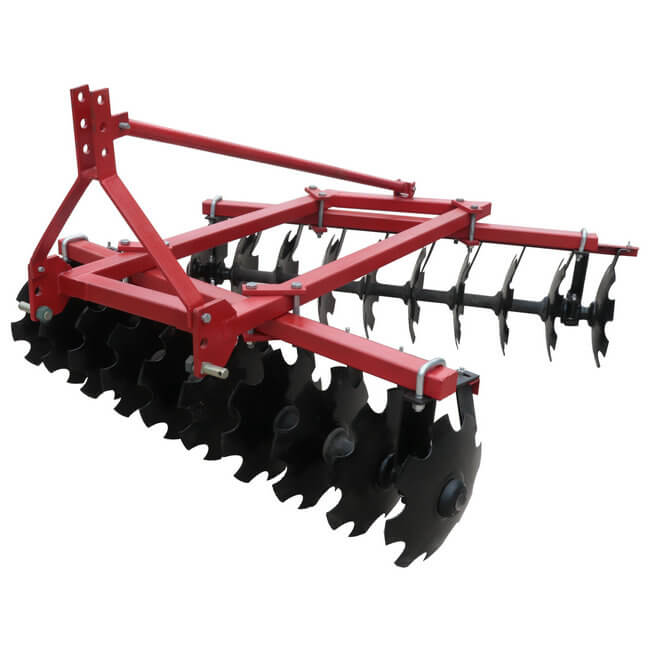

Mounted Offset Disc Harrow:

Mounted Offset Disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic matter and remains.

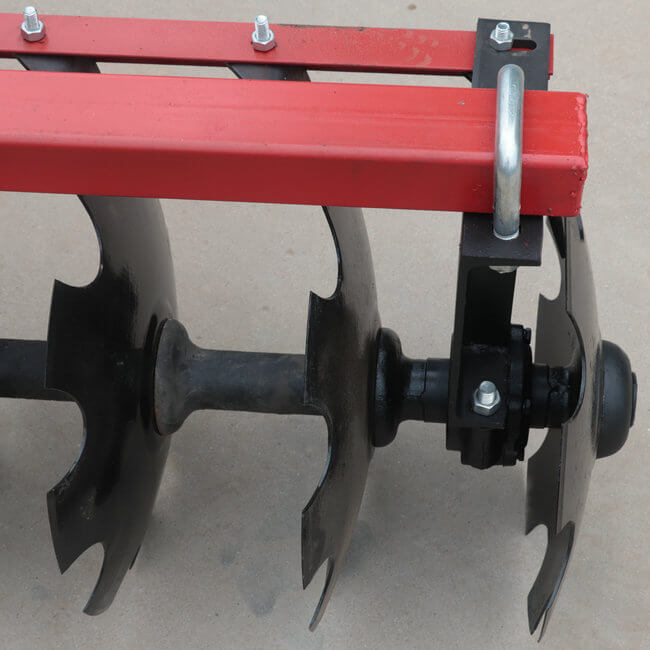

. Front and back notched harrow disc, easily broken soil and chopped straw.
. High quality 65Mn disc blade, HRC：40-44.
. Easily attached and mounted.

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3
Working width (mm)	1100	1300	1500	1700	1900	2300
Working depth (mm)	120
Gang bolt	28 Solid shaft
Disc blade	460x3mm
No of discs (pcs)	12	14	16	18	20	24
Total weight (kg)	200	220	240	260	310	360
Tractor power (hp)	15	18	25	40	50	60
Mounted cat	Cat I					Cat II
