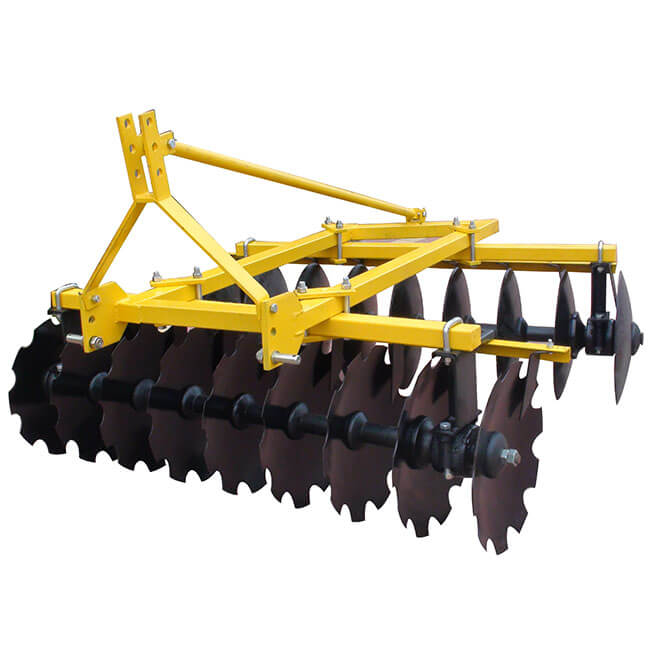

Mounted Offset Disc Harrow

Mounted Offset Disc Harrow:

Mounted Offset Disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic matter and remains.

. Notched and round harrow disc, easily chopped straw and earth levelling.
. High quality 65Mn disc blade，HRC：40-44.
. Easily attached and mounted.

Model	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width (mm)	1600	1800	2000	2200	2400	2500
Working depth (mm)	140
Gang bolt (mm)	32 Solid shaft
Disc blade	560x4mm
No of discs (pcs)	14	16	18	20	22	24
Total weight (kg)	350	380	420	470	540	650
Tractor power (hp)	30	40	50	60	70	80
Mounted cat	Cat I	Cat ll
