1LY-822
Mingyuan
80-100HP
1760mm
120-200mm
560x5mm
Product description

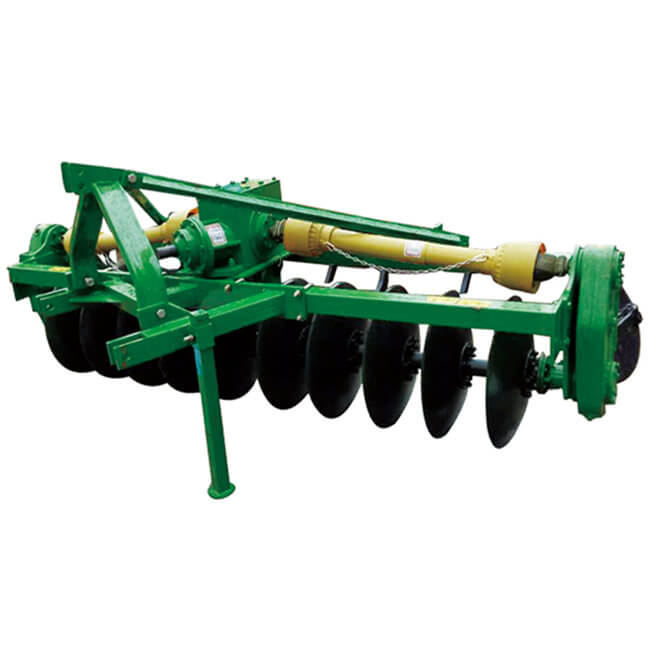

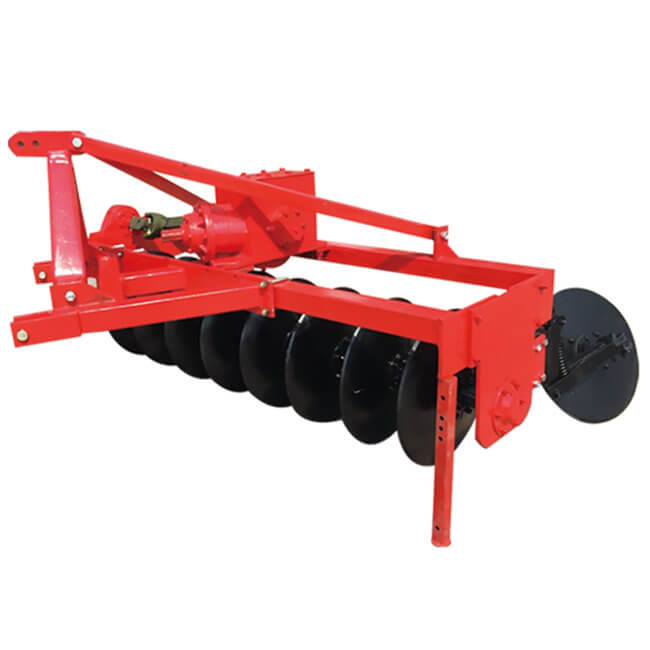

Paddy Land Driven Disc Harrow:
1LYQ Series driven disc harrow is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor's PTO, this mounted driven disc plough is especially suitable for cultivation in Paddy field.
Model | Cutting width（mm） | Cutting depth（mm） | Disc blade | PTO speed | Weight (kg) | Tractor Power (hp) |
1LYQ-722FS | 1540 | 12-20cm | 560x5mm | 540/720 (r/min) | 600 | 80-100 |
1LYQ-822FS | 1760 | 650 | 80-100 | |||
1LYQ-922FS | 1980 | 700 | 90-120 | |||
1LYQ-822FD | 1760 | 700 | 100-120 | |||
1LYQ-922FD | 1980 | 750 | 100-120 | |||
1LYQ-1022FD | 2200 | 800 | 110-150 | |||
1LYQ-825FD | 1900 | 610x5mm | 850 | 110-150 | ||
1LYQ-925FD | 2100 | 900 | 110-150 | |||
1LYQ-1025FD | 2300 | 950 | 110-150 |
