1LY-722
Mingyuan
50-70HP
1540mm
120-200mm
560x5mm
Product description

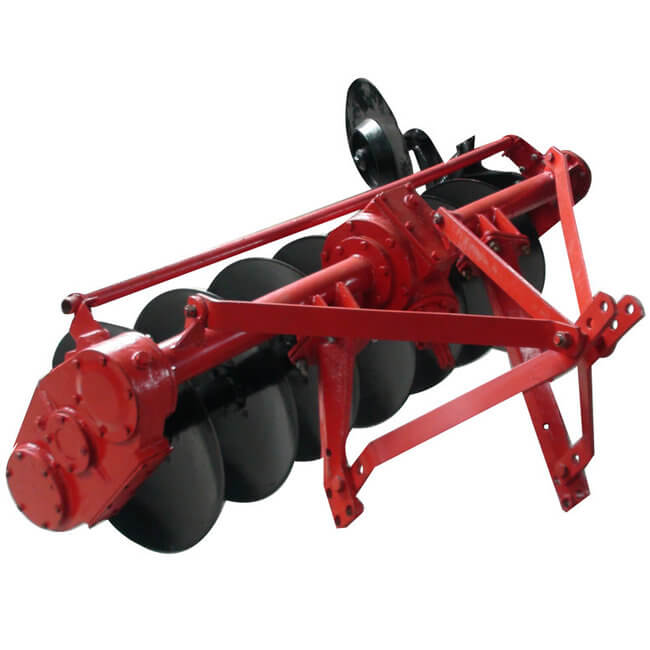

Paddy Land Driven Disc Plough:
1LYQ Series driven disc plough is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor's PTO, this mounted driven disc plough is especially suitable for cultivation in Paddy field.
Model | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 | 1LYQ-622 | 1LYQ-722 | 1LYQ-822 |
Working width (mm) | 660 | 880 | 1100 | 1320 | 1540 | 1760 |
Working depth (mm) | 120~200 | |||||
Q'ty of disc | 3 | 4 | 5 | 6 | 7 | 8 |
Disc (mm) | 510x4 | 560x5 | ||||
Speed of input shaft | 540-720 (r/min) | |||||
Total weight (kg) | 220 | 240 | 280 | 325 | 360 | 390 |
Matched power (hp) | 15-20 | 20-30 | 25-40 | 40-50 | 50-70 | 70-80 |
Linkage | Cat l | Cat ll | ||||
