3ZT-2.2
Mingyuan
50-70HP
2200mm
100-250mm
Product description

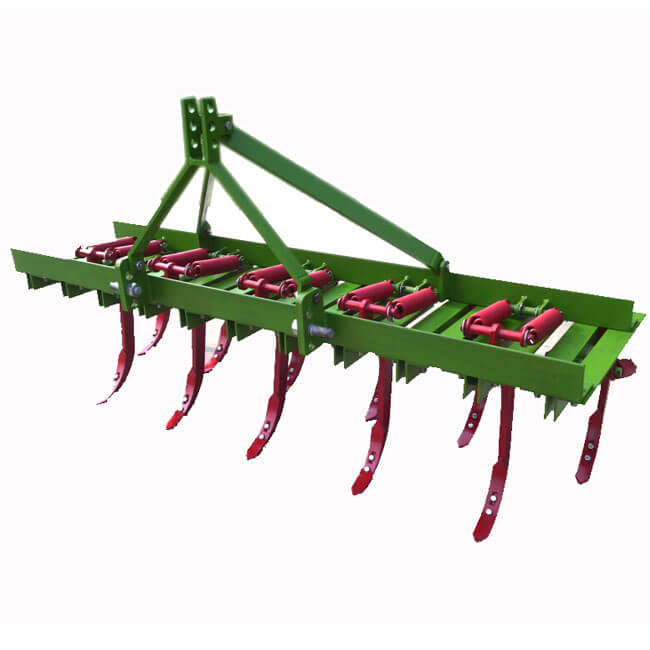

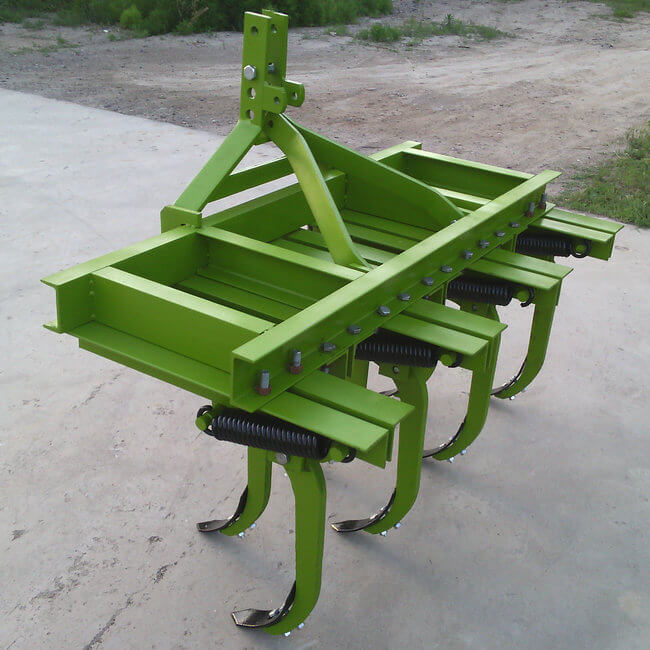

Spring Cultivator:

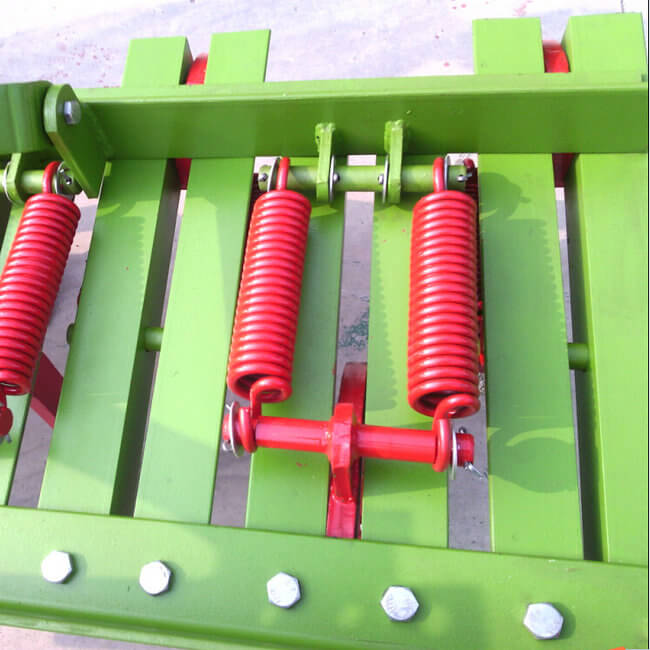

The 3ZT series of spring cultivator is developed from our company according to the demand of foreign market. This machine aadopts double-spring tension device which enables the tines during operation to bounce when meet with obstacles and return to normal working quickly after over them, by which the tines are protected .It has advantages of row spacing to be conveniently adjusted and the depth to be easily controlled. And the machine is suitable to cultivate and loosen soil in the corn, cotton and beans field.
Model | 3ZT-1.2 | 3ZT-1.4 | 3ZT-1.8 | 3ZT-2.2 | 3ZT-2.5 | 3ZT-3.0 |
Width of cut (mm) | 1200 | 1400 | 1800 | 2200 | 2500 | 3000 |
Depth of cut (mm) | 100-250 | |||||
No of tines | 5 | 7 | 9 | 11 | 13 | 15 |
Weight (kg) | 260 | 320 | 400 | 490 | 550 | 640 |
Tractor power (hp) | 25 | 30-40 | 40-50 | 50-70 | 70-80 | 80-100 |
Mounted cat | Cat l | Cat ll | ||||
