Sweep Quick Change

Cultivator Sweep Quick Change:

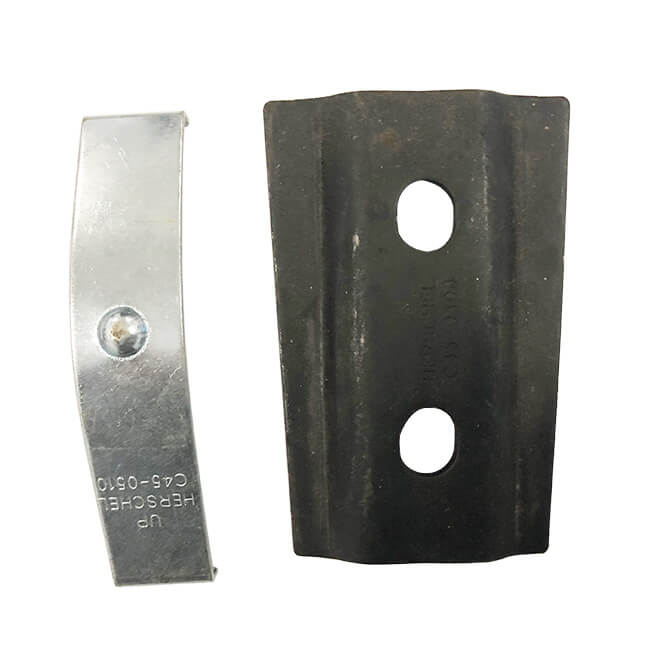

The Quick Change system creates a universal mounting system that can be used on almost any machine. By simply mounting a bracket and keeper spring, one can work with over 100 different cultivator sweeps and spikes without involving a single additional nut or bolt.

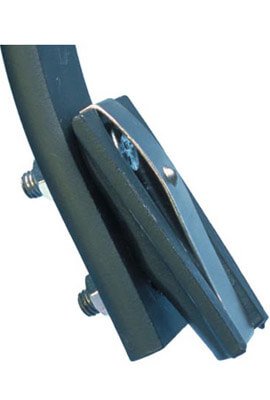

With the Quick Change system, mounting couldn't be any simpler. First, attach the Quick Change bracket to the shank with two plow bolts, exactly as you would a traditional sweep, then snap the retainer spring in place. Next, slide the Quick Change sweep onto the mounted bracket.

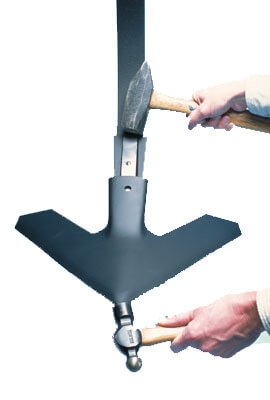

Once the Cultivator sweep is in place, gently tap the nose of the piece with a hammer while bracing against the top of the mounted bracket using another hammer in order to stop the spring action of the shank. Continue tapping until the retainer spring's round button pops into place within the hole on the sweep's shank.

The remove the Cultivator sweep, simply tap the face of the sweep's shank to release the tension in the retainer spring.
